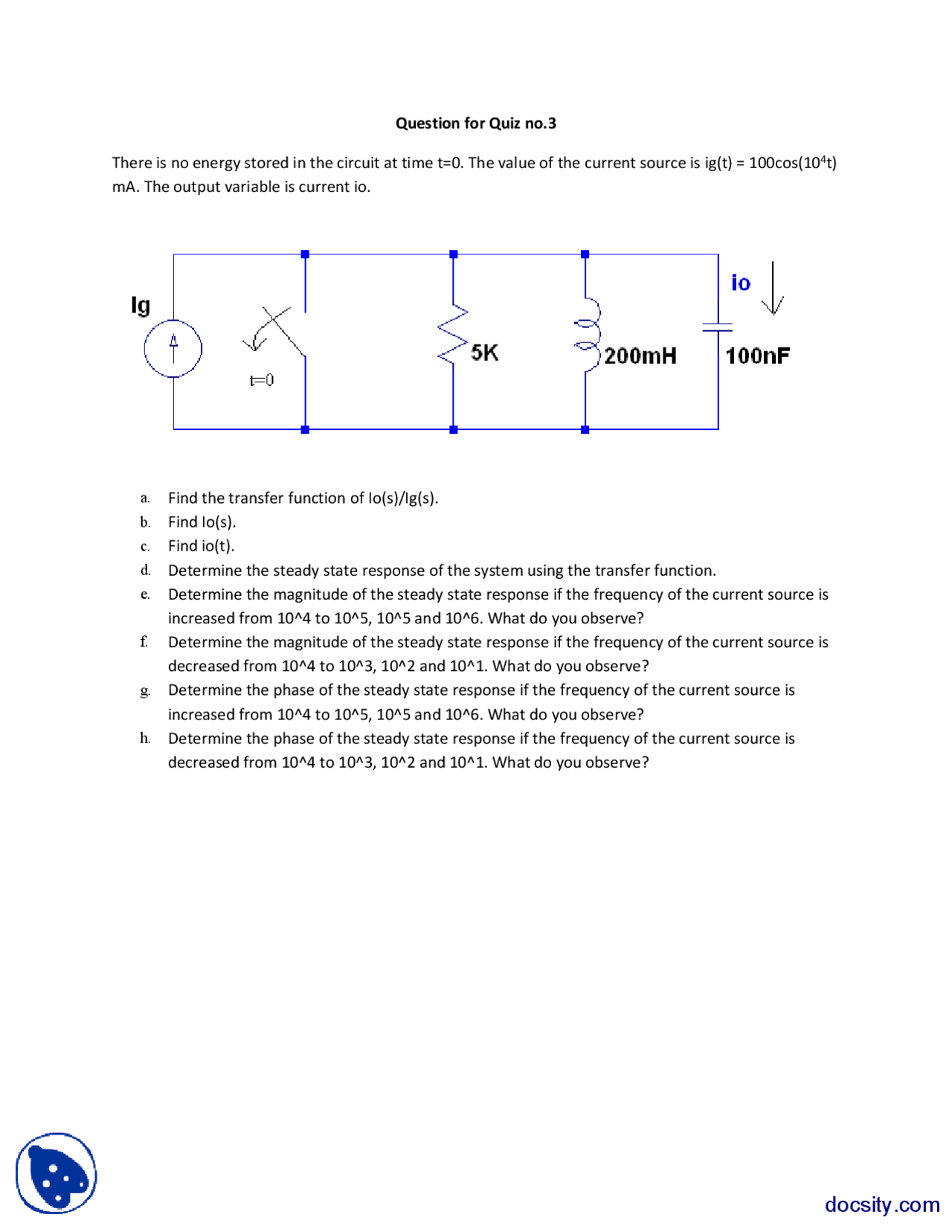

Question for Quiz no.3
There is no energy stored in the circuit at time t=0. The value of the current source is ig(t) = 100cos(104t)
mA. The output variable is current io.
a. Find the transfer function of Io(s)/Ig(s).
b. Find Io(s).
c. Find io(t).
d. Determine the steady state response of the system using the transfer function.
e. Determine the magnitude of the steady state response if the frequency of the current source is
increased from 10^4 to 10^5, 10^5 and 10^6. What do you observe?
f. Determine the magnitude of the steady state response if the frequency of the current source is
decreased from 10^4 to 10^3, 10^2 and 10^1. What do you observe?
g. Determine the phase of the steady state response if the frequency of the current source is
increased from 10^4 to 10^5, 10^5 and 10^6. What do you observe?
h. Determine the phase of the steady state response if the frequency of the current source is
decreased from 10^4 to 10^3, 10^2 and 10^1. What do you observe?
