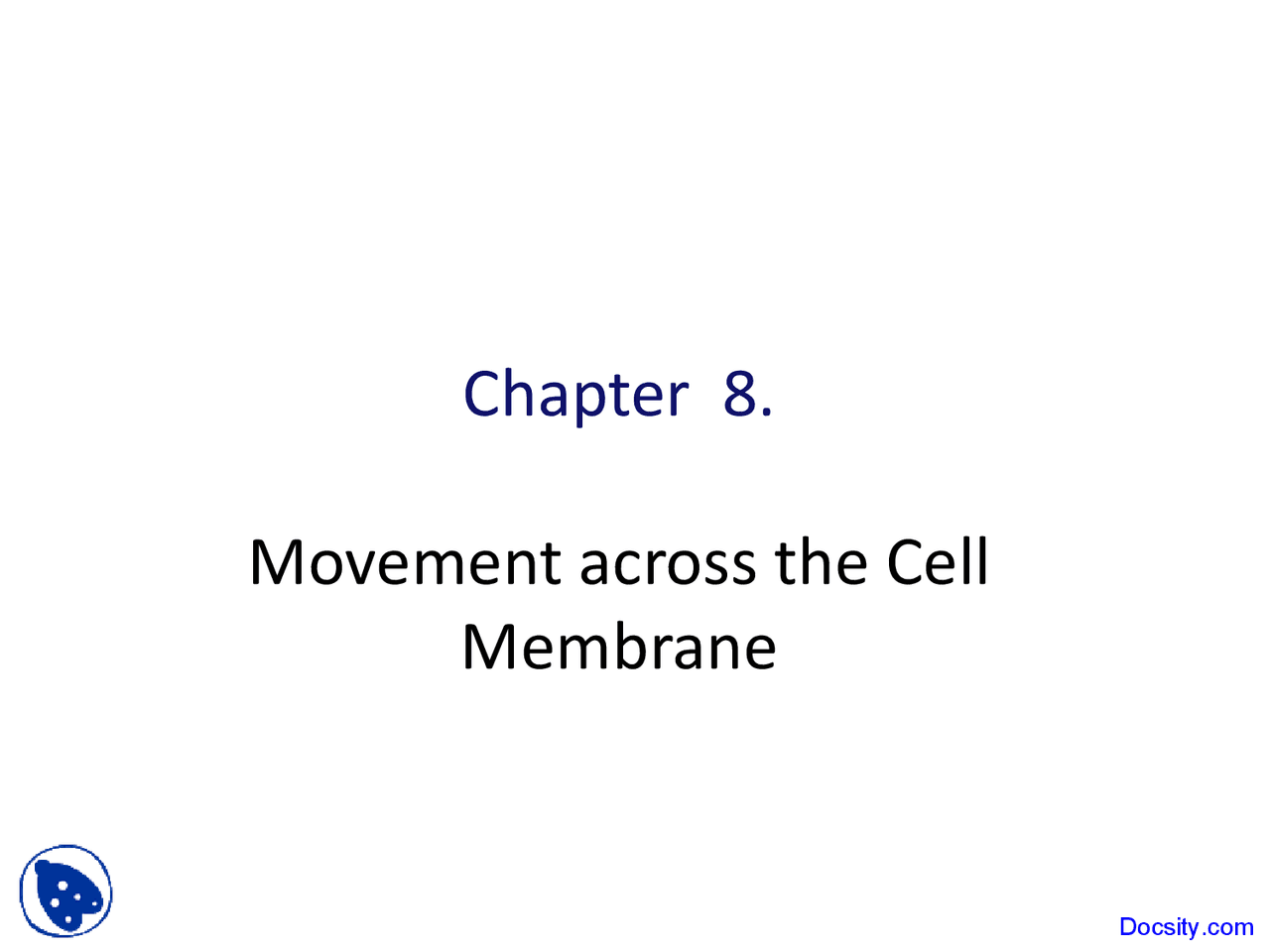

Chapter 8.
Movement across the Cell
Membrane
Diffusion
• 2nd Law of Thermodynamics
governs biological systems
- Universe tends towards disorder
Diffusion
movement from high → low concentration
Diffusion
• Move for HIGH to LOW concentration
- “passive transport”
- no energy needed
diffusion osmosis Docsity.com
Cell (plasma) membrane
• Cells need an inside & an outside…
- separate cell from its environment
– cell membrane is the boundary
IN
food carbohydrates sugars, proteins amino acids lipids salts, O 2 , H 2 O
OUT
waste ammonia salts CO 2 H 2 O products cell needs materials in & products or waste out
IN
OUT
Can it be an impenetrable boundary? NO!
Docsity.com
Lipids of cell membrane
• Membrane is made of phospholipids
- phospholipid bilayer
phosphate
lipid
hydrophilic
hydrophobic
inside cell
outside cell
Phospholipids
Phospholipid bilayer
• What molecules can get through directly?
inside cell
outside cell
fats & other lipids
can slip directly
through the
phospholipid cell
membrane, but…
what about other
stuff?
lipid salt
sugar aa H 2 O
NH 3
Simple diffusion across membrane
inside cell
outside cell
Which way will lipid move?
low
high
lipid
lipid
lipid
lipid
lipid
lipid lipid
lipid^ lipid
lipid
lipid
lipid
lipid
lipid
Diffusion through a channel
• Movement from high to low
inside cell
outside cell
sugar
sugar
sugar
sugar
sugar
sugar
sugar sugar
sugar sugar sugar
Which way will sugar move?
low
high
sugar
Semi-permeable cell membrane
• But the cell still needs control
- membrane needs to be semi-permeable
- specific channels allow specific material in & out
inside cell
outside cell
H 2 O aa sugar
NH 3 salt
Why proteins?
• Proteins are mixed molecules
- hydrophobic amino acids
- stick in the lipid membrane
- anchors the protein in membrane
- hydrophilic amino acids
- stick out in the watery fluid in & around cell
- specialized “receptor” for specific molecules
Facilitated Diffusion
- Globular proteins act as doors in membrane
- channels to move specific molecules through cell membrane
“The Bouncer”
open channel = fast transport high
low
Getting through cell membrane
- Passive transport
- diffusion of hydrophobic (lipids) molecules
- high → low concentration gradient
- diffusion of hydrophobic (lipids) molecules
- Facilitated transport
- diffusion of hydrophilic molecules
- through a protein channel
- high → low concentration gradient
- Active transport
- diffusion against concentration gradient
- low → high
- uses a protein pump
- requires ATP
- diffusion against concentration gradient
Facilitated diffusion
• Move from HIGH to LOW concentration
through a protein channel
- passive transport
- no energy needed
- facilitated = with help
